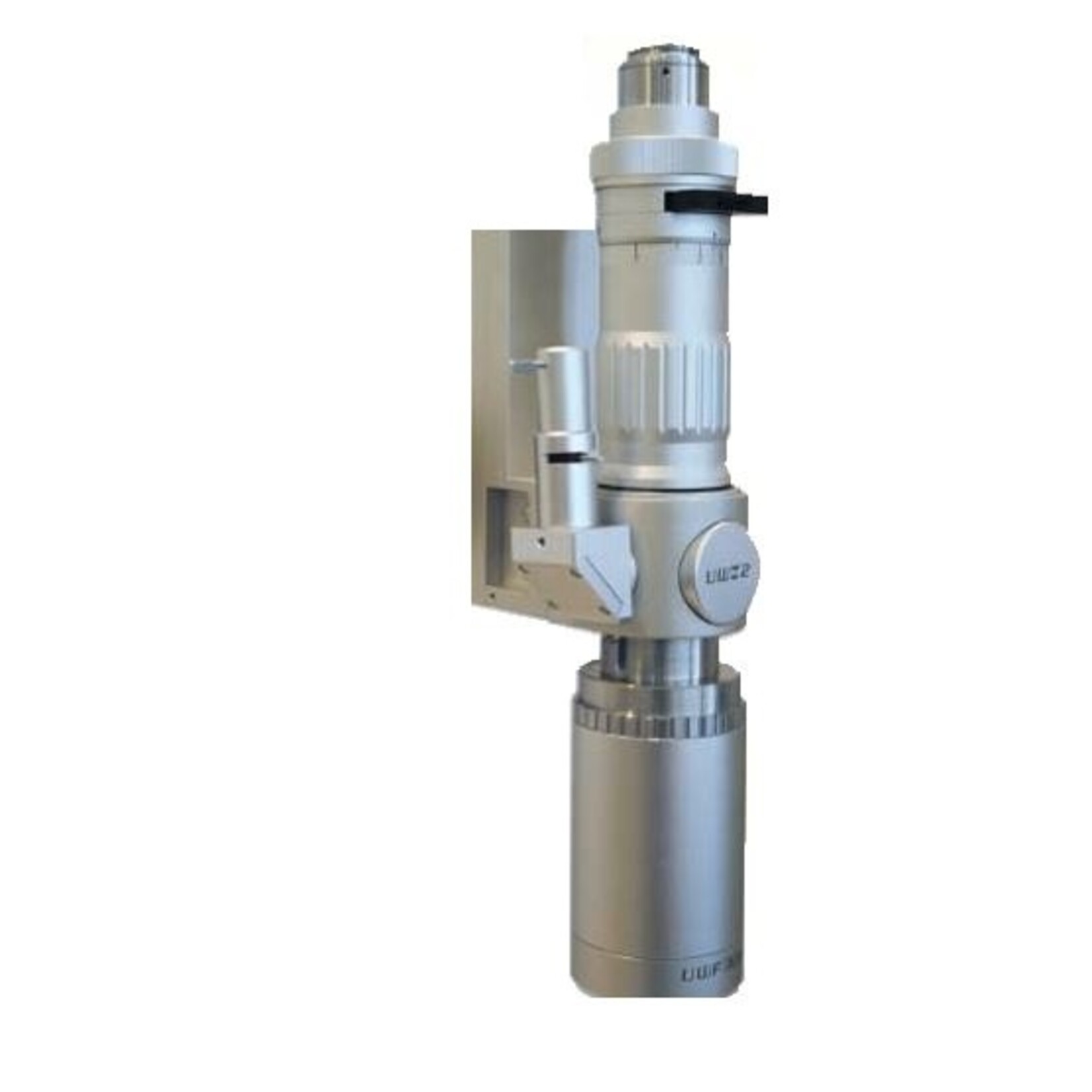

UWZ-400 zoom system with 400 mm working distance 400 mm

Order number: UWZ-400

€5.500,00 *

* Price without VAT - plus Shipping costs

High-precision optics with integrated coaxial illumination and working distance of 400 mm with magnification from 20x to 286x with 1/2” camera

Out of stock (Delivery time: 4 weeks after order)

Zoom factor: 14
Optical magnification: 0.34x to 4.78x
Total magnification on screen: 20x to 286x
Numerical aperture (N.A.): 0.007 to 0.05
Resolution (theoretical): 47.93 to 6.71 μm
Focusing range (theoretical): ±5,612.2 to ±110 µm
Field of view (object side): φ23.5 to φ1.67 mm
Field of view (viewing side): φ8 mm C-mount (suitable for 1/2” CCD camera)
Corrected wavelength range: 400 nm to 700 nm
Illumination: Coaxial light input (standard)
Options: Light source & light guide, focusing unit, USB camera, measuring software, stand, etc. (not included in the prices above).
Note: The total magnifications given above are achieved using a 1/2“ CCD camera and a 19” monitor.
