Precision cross slide table 150 x 150 mm, equipped with highly precise cross roller bearings. Adjustment is carried out using the side knurled screws or by moving the lever by operating the manual handle (quick adjustment) in X and Y. L support bars are to be used to mount the device. Depending on requirements, the EK-150 is supplied with a metal or glass insert plate (please specify when ordering). The EK series is also available with 200 x 200 mm and 300 x 300 mm traversing ranges.

Zeichnung - Drawing - EK-150

Travel range: 153 x 153 mm
Drive: coaxial drive / rack and pinion
with quick adjustment function
Material: aluminium
Surface: Anodised, black lacquered
Weight: 3,000 g
Load capacity: 5,000 g

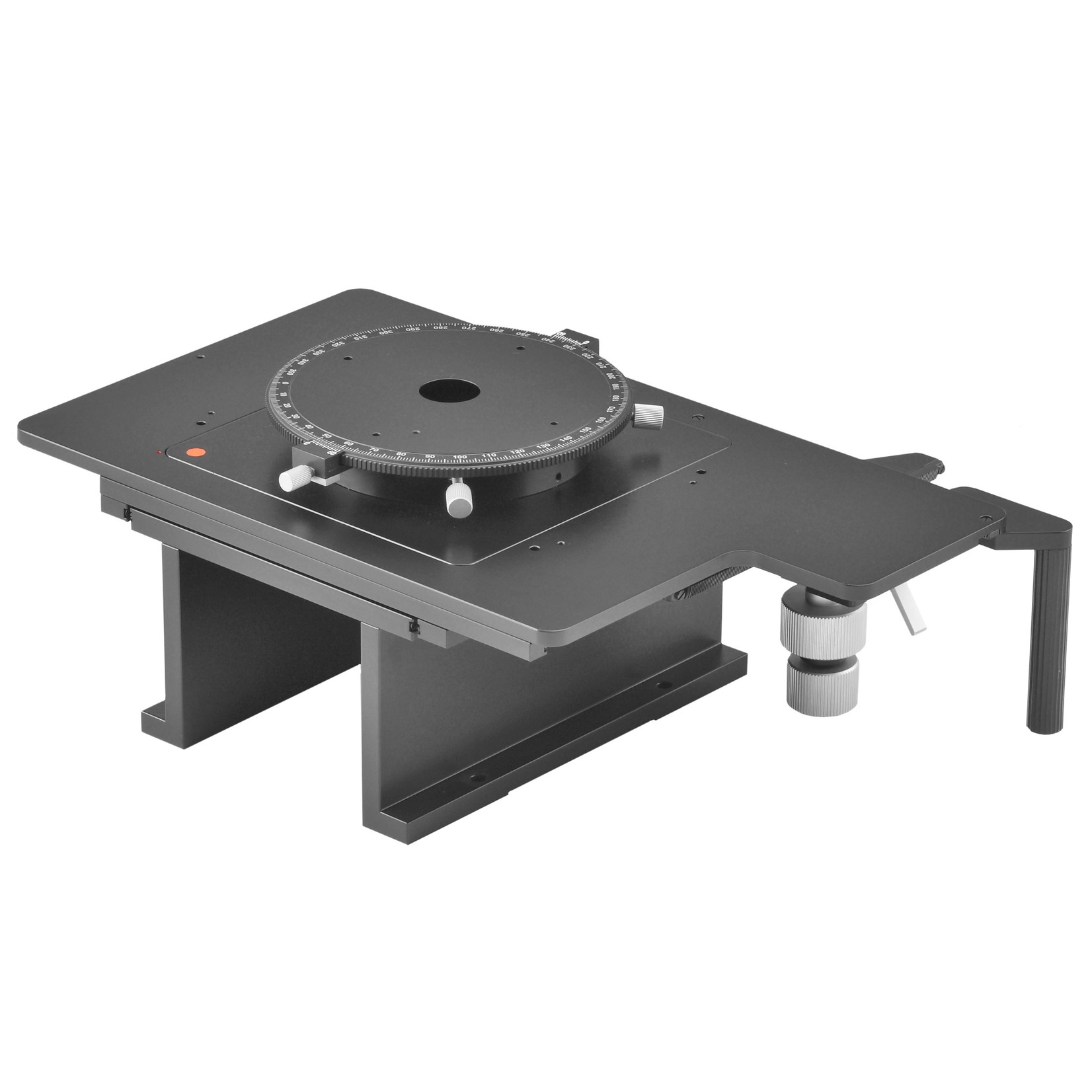

A rotary table with an insert plate has been designed as an option for the EK-150 cross slide table. In addition to rotating through 360°, this can be adjusted in or out of the centre by means of two knurled screws on the right-hand side. A knurled screw to fix the position is mounted at the front. There is a graduation all around. In the middle, the rotation table has an opening to position further fixtures centrally, if necessary.
