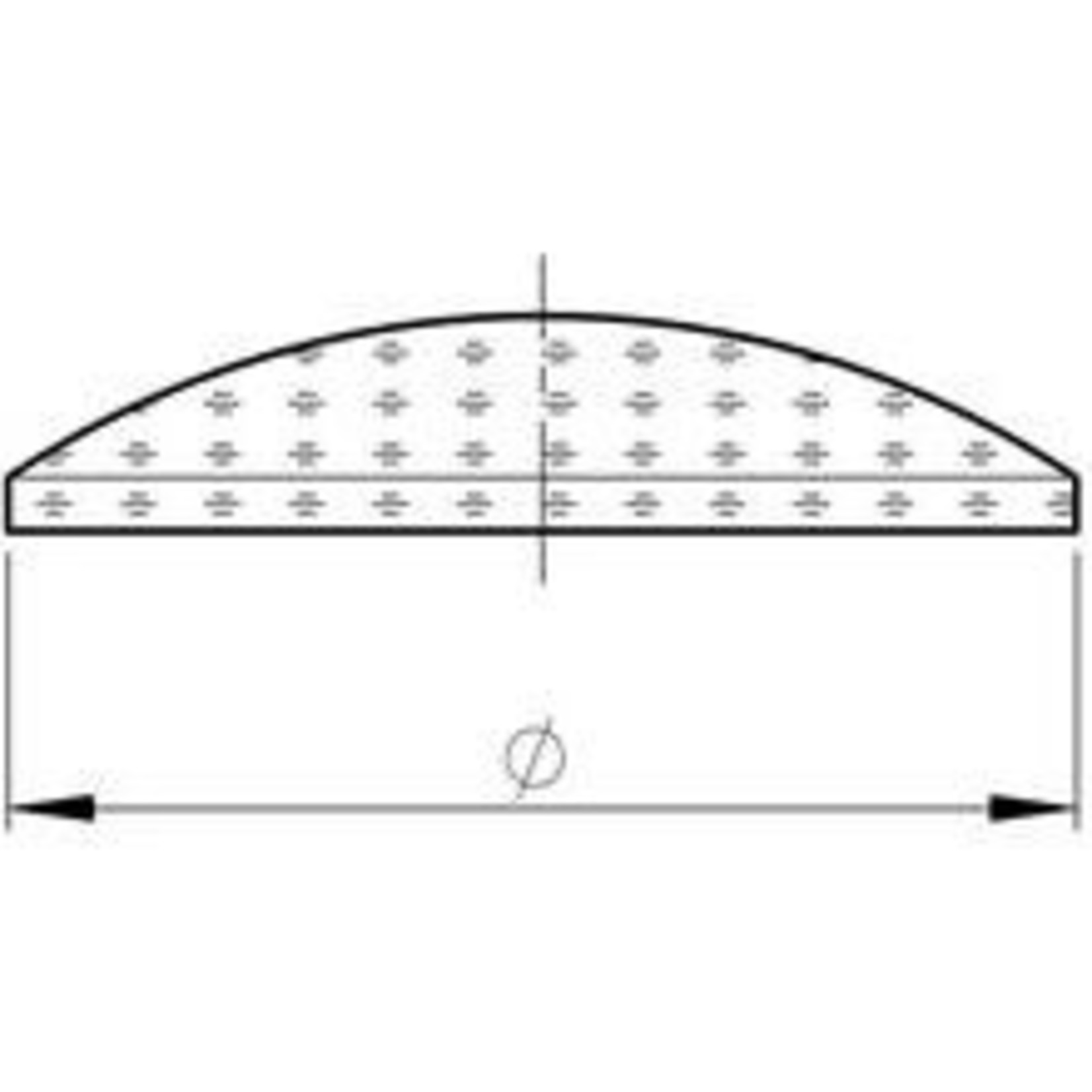

Plano-convex lens Ø 16.2 mm - pack of 10 made of optical glass, ground and polished in various magnifications from 12.0 to 40.0 diopters
Plano-convex lens Ø 16.2 mm - pack of 10 made of optical glass, ground and polished in various magnifications from 12.0 to 40.0 diopters
Size: Ø 16.2 mm
Optical power: 12 dioptres
Focal length: 83 mm
Rim thickness: 1.5 mm
Centre thickness: 2.45 mm
cylindrical rim 1 - 2.5 mm (pressed edge)
Size: Ø 16.2 mm
Optical power: 16 dioptres
Focal length: 62 mm
rim thickness: 1.3 mm
centre thickness: 2.6 mm
cylindrical rim 1 - 2.5 mm (pressed edge)
Size: Ø 16.2 mm
Optical power: 18 dioptres
Focal length: 50 mm
rim thickness: 1.7 mm
centre thickness: 2.99 mm
cylindrical rim 1 - 2.5 mm (pressed edge)
Size: Ø 16.2 mm
Optical power: 24 dioptres
Focal length: 42 mm
rim thickness: 1.5 mm
centre thickness: 2.9 mm
cylindrical rim 1 - 2.5 mm (pressed edge)
Size: Ø 16.2 mm
Optical power: 27 dioptres
Focal length: 37 mm
rim thickness: 1.4 mm
centre thickness: 2.35 mm
cylindrical rim 1 - 2.5 mm (pressed edge)
Size: Ø 16.2 mm
Optical power: 34 dioptres
Focal length: 29 mm
Rim thickness: 0.8 mm
centre thickness: 3.0 mm
cylindrical rim 1 - 2.5 mm (pressed edge)
Size: Ø 16.2 mm
Optical power: 37 dioptres
Focal length: 27 mm
rim thickness: 0.9 mm
centre thickness: 3.3 mm
cylindrical rim 1 - 2.5 mm (pressed edge)
Size: Ø 16.2 mm
Optical power: 40 dioptres
Focal length: 25 mm
Rim thickness:
Centre thickness:
cylindrical rim 1 - 2.5 mm (pressed edge)
Tolerances:
from 40 mm Ø the size tolerances are subject to the deviations from the nominal dimension that the raw glass compacts have.
These are:
for 40 - 75 mm Ø -0.3 mm
for 75 - 120 mm Ø -0.5 mm
over 120 mm Ø -0.8 - 0.9 mm
