Technical data:

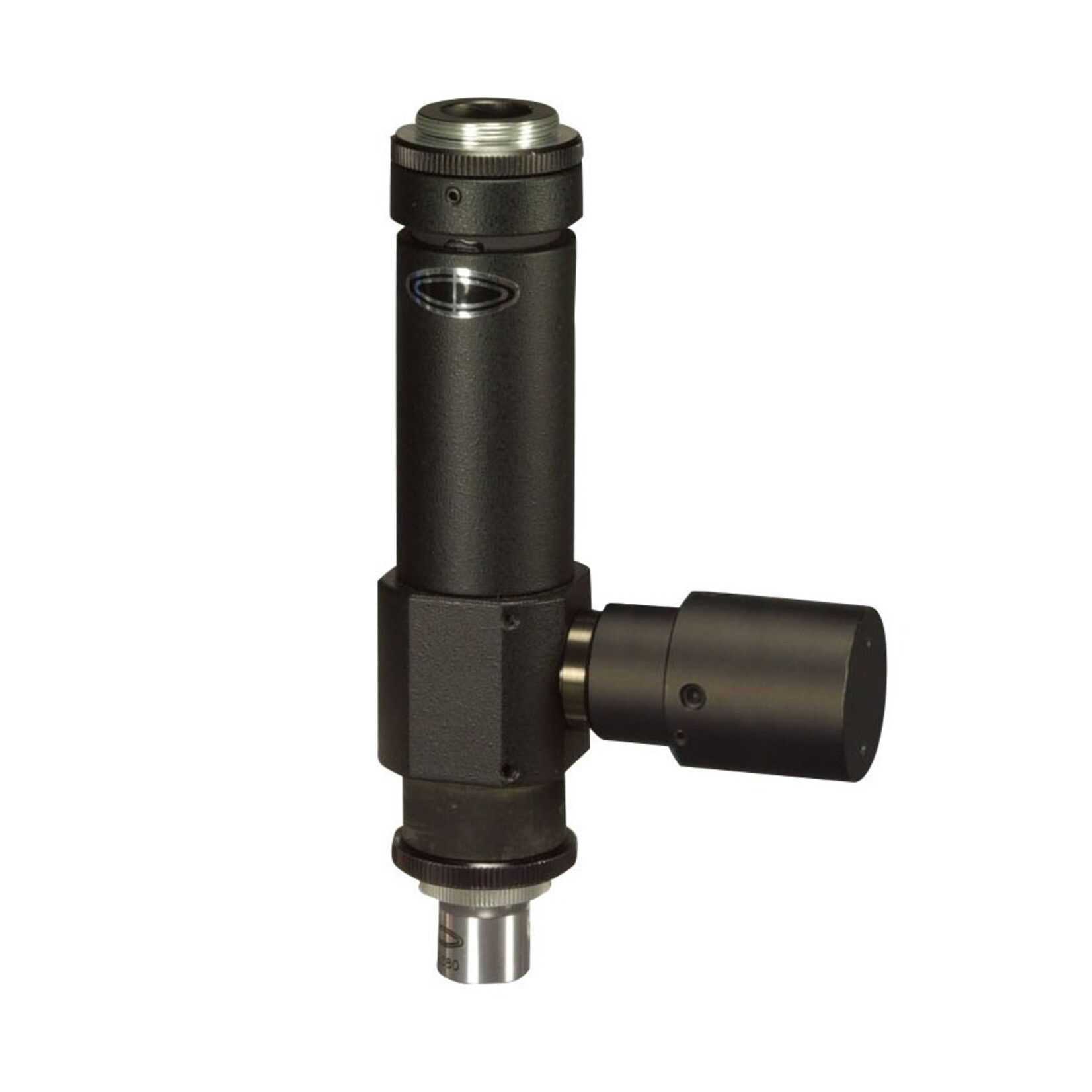

• Microscope tube: Straight tube with C-mount and integrated coaxial LED illumination
• Tube length: 163 mm
• Objective: OB-3 (3x)
• Objective length: 21 mm
• Working distance (W.D.): 34 mm
• Light source: White LED, cable length 1.8 m
• Power supply: 12 volts with dimmer
• C-mount connection: 32 threads/25.4 mm Focal length: 17.526 mm
• Weight of microscope tube: 0.6 kg
• Field of view: 2,1 mm
• Magnification on 28’ screen: 318x
• Pixel size: 2 µm
• System length including USB 3.0 camera (without cable): 210 mm

Note: The Metric measurement software and the USB 3.0 camera or HDMI camera described above are not included in the price and must be ordered separately.
