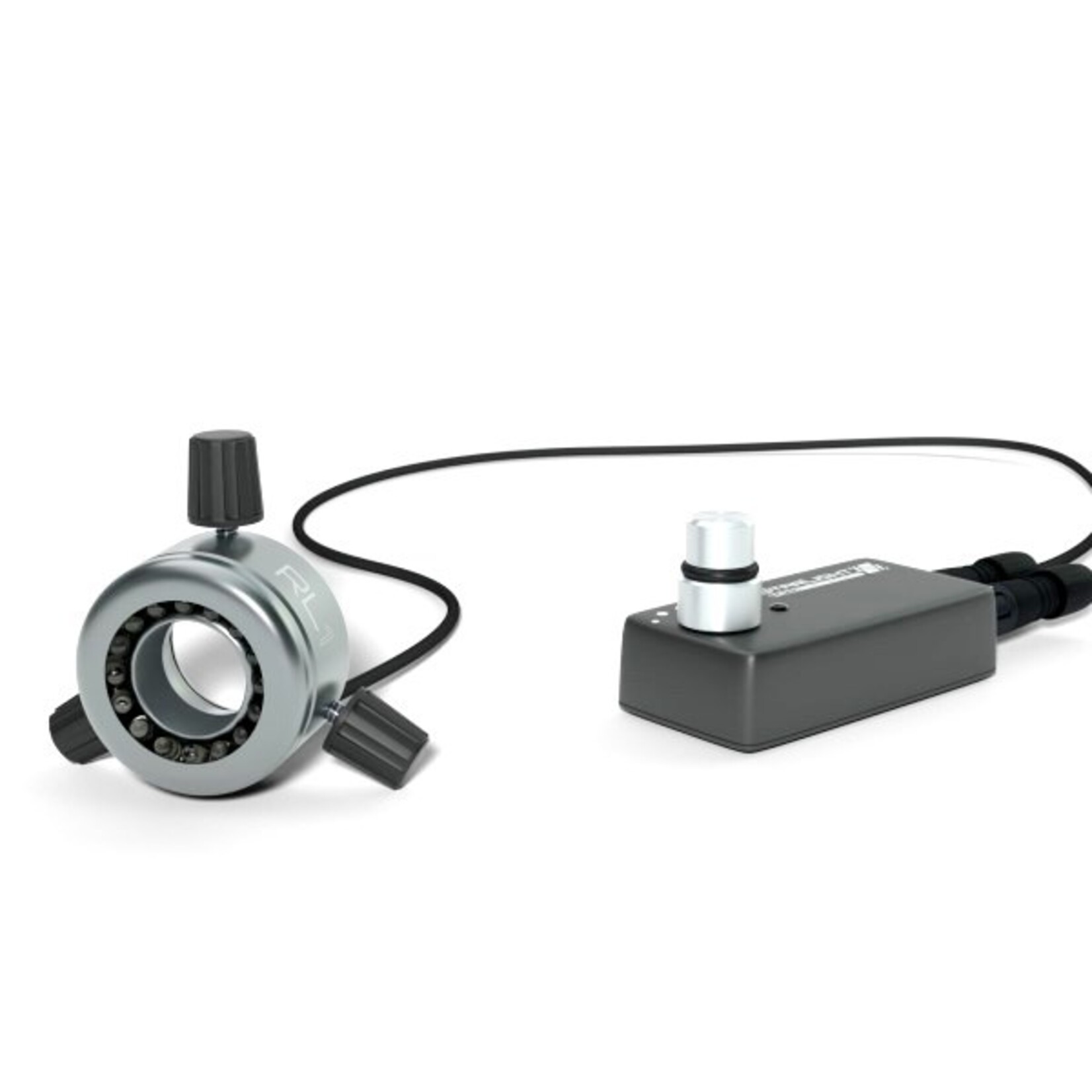

Special LED ring light with reduction ring for TITAN centering microscopes. Technical description:

· Homogeneous illumination of the entire work area
· Perfect incident light illumination for applications with cameras and lenses in industrial image processing
· Flicker-free light thanks to optimized, low-loss electronics
· Brightness adjustable from 0 - 100%
· Available in different light colors and color temperatures
· Variable clamping diameter, adaptable with reducing rings
· Robust aluminum housing in a modern design
· Number of LEDs: 16
· Brightness control: Finely adjustable 0 - 100% with memory function
· Power consumption: Approx. 4 W
· Input power supply: 100 - 240 V AC, 50/60 Hz
· Output power supply: 24 V DC, 1 A
· Height: 25 mm
· Outer diameter: 44 mm
· Clamping diameter: Max. 26 mm
· Length of supply line: 0.85 m
· Cable length power supply: 1.40 m
· Material: Anodized aluminum
· Color: Titanium
· Weight: Approx. 60 g
· Dimensions of control unit (L × W × H): 78 mm × 38 mm × 21 mm
