Precise measurements and reliable workflows with the KITOZOOM – motorized with integrated controller
The KITOZOOM system offers reproducible measurement results and maximum process reliability thanks to a motorized zoom function and a fully integrated control unit. The solution comes standard with a 1x adapter, a 0.5x close-up lens and a mounting adapter, ensuring easy installation and high compatibility.
Optional extensions for added flexibility

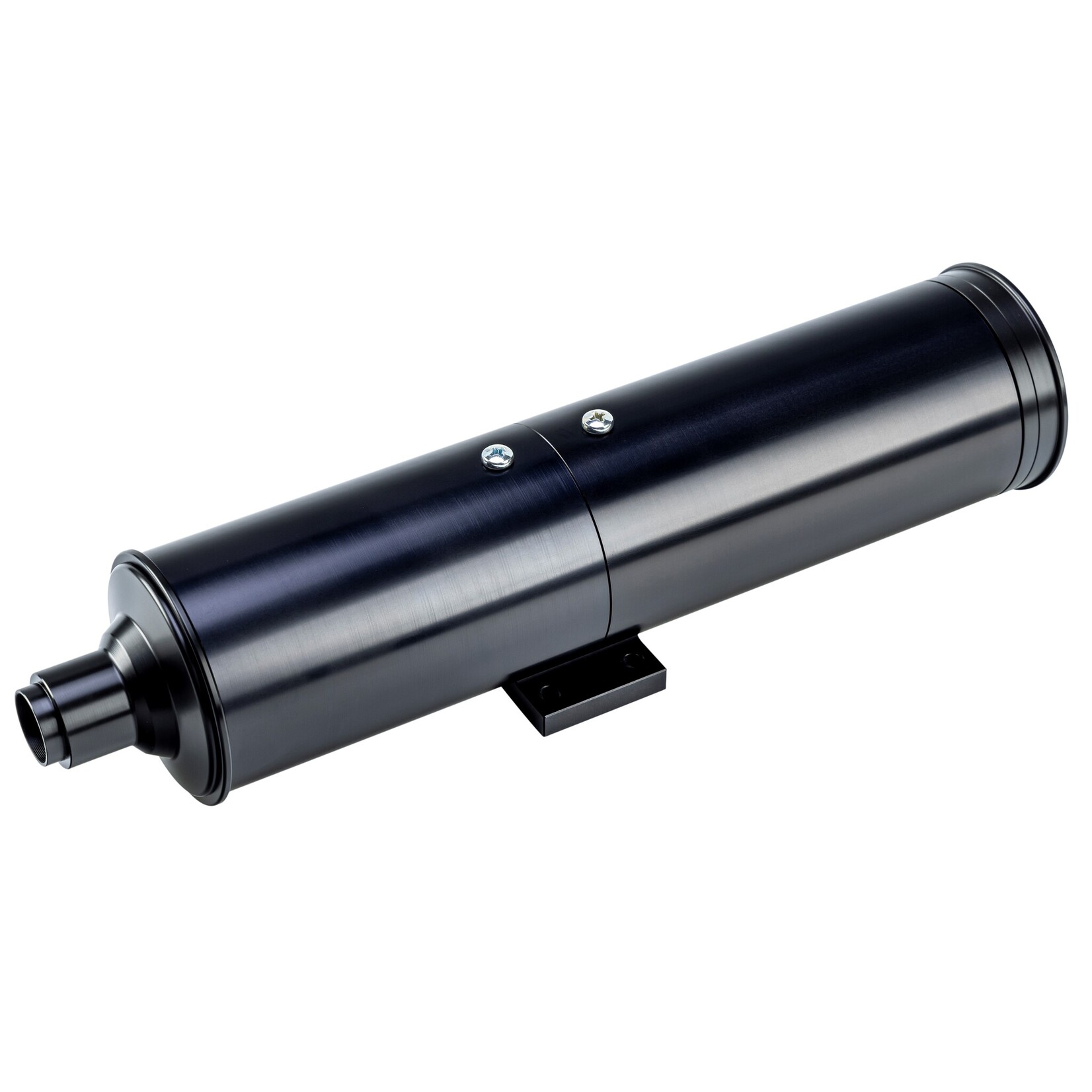

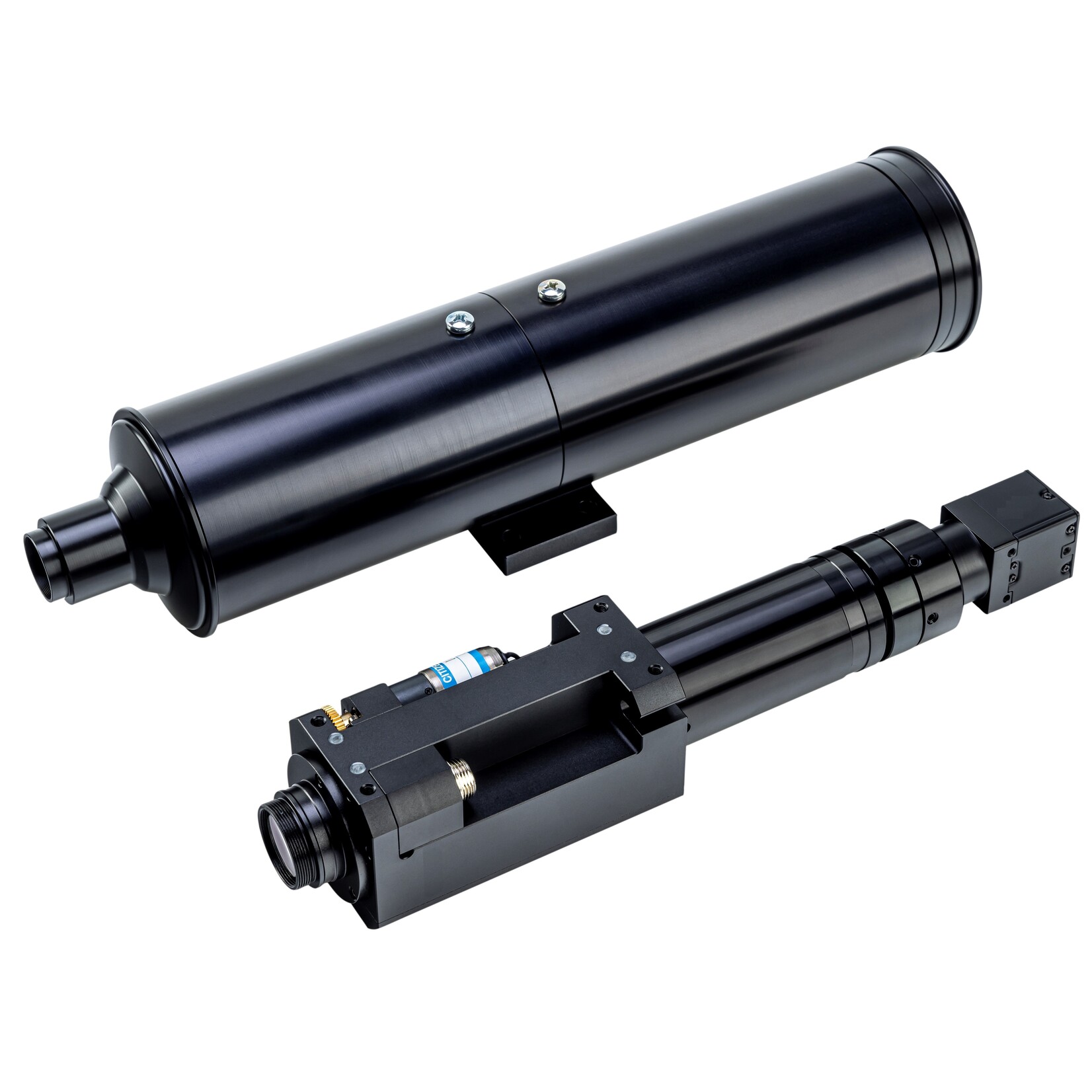

- The system is optionally available with a robust protective housing, ideal for use in demanding work environments.
- Additional adapters and close-up lenses are available on request to meet specific requirements.
High-resolution image processing
The KITOZOOM comes with a 5.6-megapixel USB camera that guarantees highly accurate measurements. The included Metric MT measurement software supports a wide range of analysis and documentation options.
Impressive technical data for maximum precision
The zoom levels offer flexible fields of view and magnifications, ideal for a range of measurement and inspection tasks.
Level Pixel size mm Magnification Field of view mm - horizontal
1 0,008 34x 20,2
2 0,005 57x 12,1
3 0,003 85x 8,1
4 0,002 113x 6,0
5 0,002 141x 4,8
6 0,002 170x 4,0
7 0,001 225x 3,0
8 0,001 282x 2,4
9 0,001 339x 2,0
10 0,001 406x 1,7
Scope of delivery (standard configuration):
- Adapters: 1x

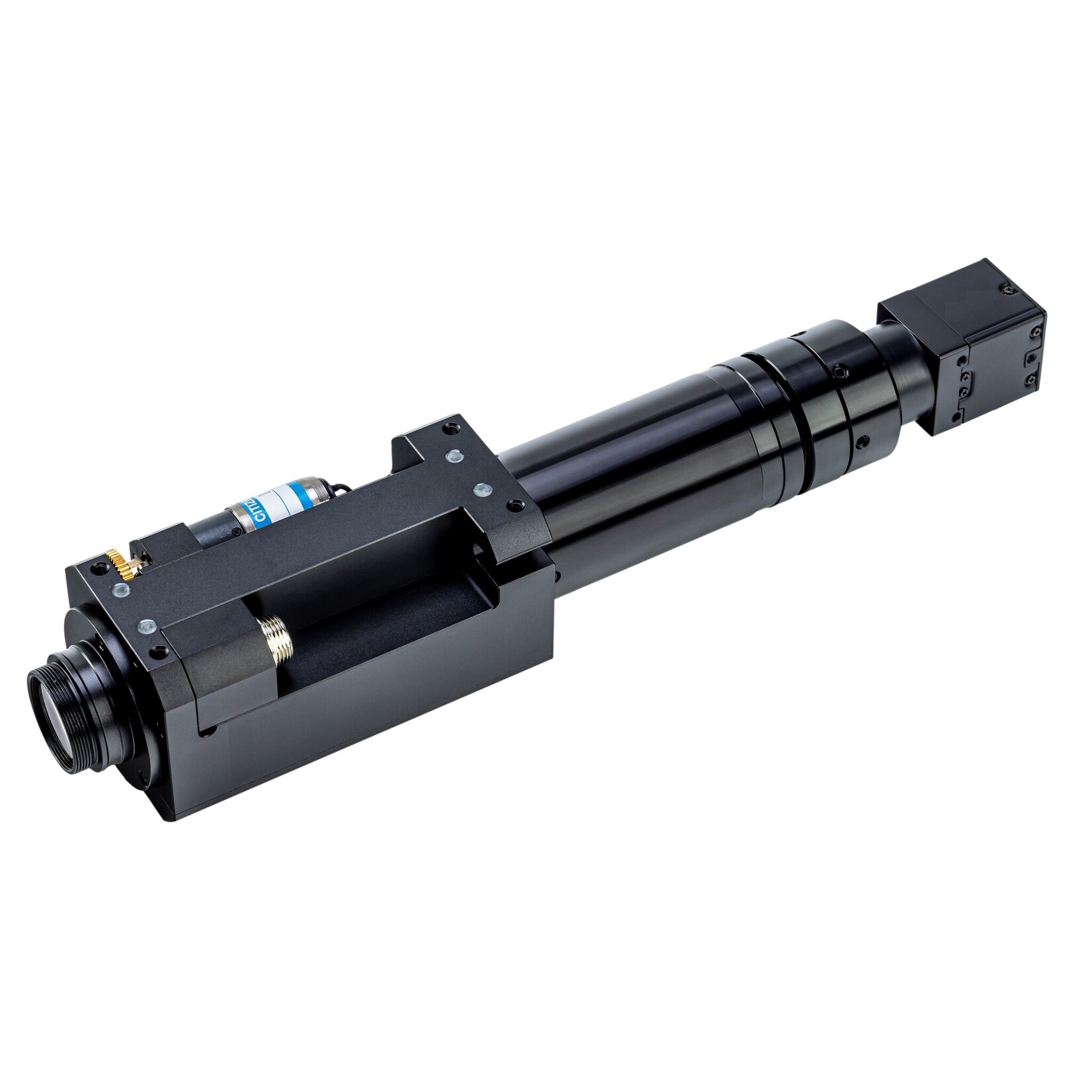

- Motorized zoom unit for reproducible measurements
- Attachment lens: 0.5x
Why choose the KITO-MOT?
- Reproducible results: Perfect for industry and laboratory.
- Easy to use: Complete system with plug-and-play functionality.
- Flexibility: Can be adapted to different applications using modular accessories.
- High resolution: 5.6 megapixel camera and precise measurement software.

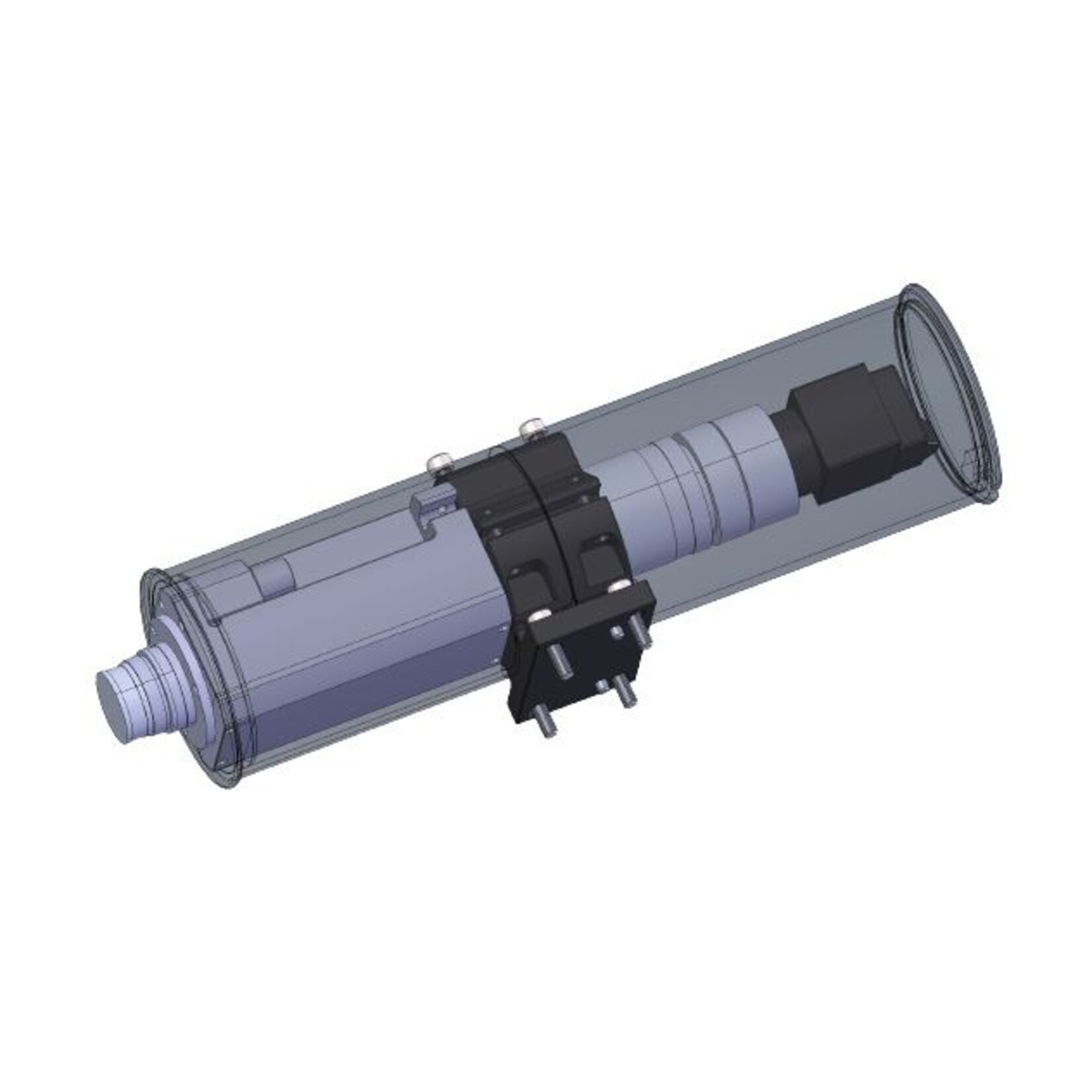

For further information and customization, please contact us directly. Below you will find PDF drawings for both configurations. On request, we will be happy to send you the corresponding step files by email.
KITO-MOT-OSG
KITO-MOT-MSG
