HEAD:

Trinocular heads of Siedentopf type with 30° inclined tubes. Pupil distance from 48 to 76 mm. Two ± 5 diopter settings. Unique rotation system allows ergonomic positioning of both tubes in a high (431 mm) and low (397 mm) position. The trinocular head has a 23.2 mm phototube. This fits all C-mount adapters.

OBJECTIVE REVOLVER:

Rotating quadruple revolving nosepiece with ball bearings.

OBJECTIVES:

Plan PLPOLi IOS (1)

• 5x/0.12
• 10x/0.25
• 20x/0.40
• S40x/0,65
• 60x/0.85 (3)
• S100x/1,25 (3)

Plan PLPOLRi IOS (2)

• 5x/0.12
• 10x/0.25
• 20x/0.40
• 50x/0.75
• S100x/0,80 (3)

1) Plan PLPOLi tension-free infinity corrected objectives for polarization applications. Objectives 5x without cover glass correction and 10/20/S40/S60/S100x oil with 0.17mm cover glass correction. For models with continuous polarization

2) Plan PLPOLRi stress-free, infinity corrected objectives for polarization applications. No cover glass correction. For models with incident illumination

3) Optional objectives

All optics are anti-fungal treated and anti-reflective coated for maximum light transmission

CROSS TABLE:

360° rotatable, Ø 160 mm cross-stage with two object clamps. Optional mechanical X-Y stage of 30 x 40 mm available

CONDENSER:

Height-adjustable Abbe N.A. 1.25 condenser with iris diaphragm and 360° swing-out, rotatable polarizer

FOCUSING:

Coaxial coarse and fine drive, 200 divisions, 1 μm per division, 200 μm per revolution, total travel approx. 24 mm, with adjustable rack stop to prevent damage to specimen and objectives. Coarse adjustment is equipped with friction control.

TRANSMITTED LIGHT ILLUMINATION:

Intensity adjustable 3 W Köhler NeoLED™ illumination with internal 100-240 V power supply. The larger aperture of the NeoLED™ enables the optical systems of the iScope® microscope to produce higher resolution images very close to the theoretical diffraction limit of the optics. Other advantages of the NeoLED™ include low power consumption, no heating, and long lifetime. The Köhler aperture provides homogeneous illumination and high contrast. Polarization models with transmitted light only are supplied with: 360° rotatable polarizing filter, 360° rotatable analyzer with 180 steps and vernier for 0.2 degree reading, Bertrand lens (built-in), 1 λ first red and 1/4 λ retardation plate, a quartz wedge, 45 mm green and blue filters for lamphouse

ILLUMINATION:

(PLPOLRi models only)

Equipped with a 50 W 12 V halogen epi-illumination and external 100-240 V power supply. Supplied with 360° rotatable polarizing filter, 360° rotatable analyzer with 180 steps and vernier for 0.2 degree reading, Bertrand lens (built-in), 1 λ first red plate, 1/4 λ retardation plate, a quartz wedge, sliders with green/blue and white/neutral density filters. 45 mm green and blue filters for the lamphouse.

ICARE SENSOR:

The unique iCare Sensor is designed to prevent unnecessary energy loss . The microscope illumination automatically turns off as soon as the microscopist leaves his seat.

CSS - CABLE STORAGE SYSTEM:

iScope® allows the user to simply tuck the power cord into the back of the instrument for easy storage

PACKAGE CONTENTS:

Included in the package are power cord, voltage control tool, dust cover, spare fuse and user manual. All packed in styrofoam boxes

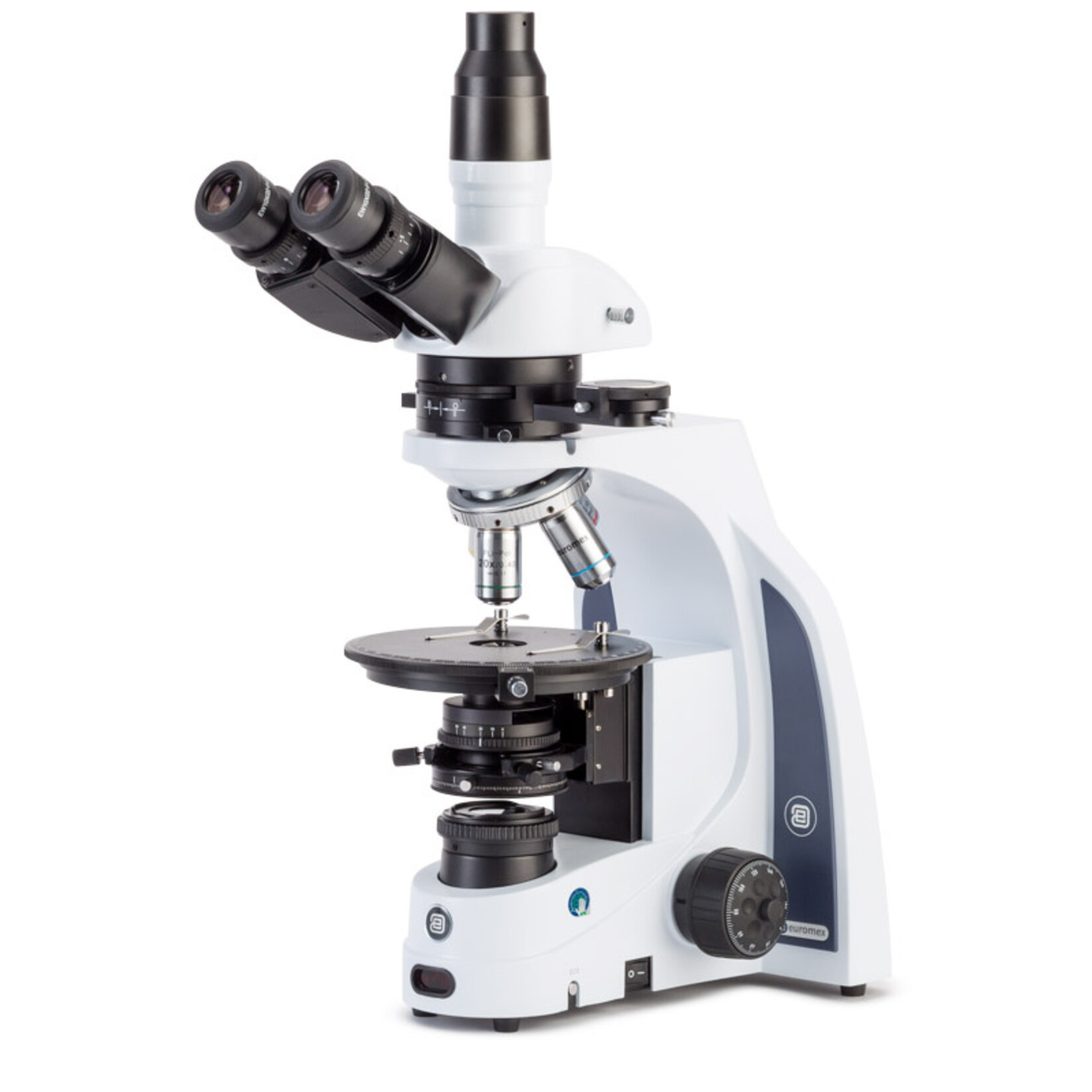

• Trinocular microscope iScope with eyepieces EWF 10x/22 mm
• One pair of EWF 10x/22 mm eyepieces, one EWF 10x/22 mm eyepiece with reticle, and one with reticle and micrometer
• Trinocular design with Siedentopf 30° inclined tubes
• Pupil distance 48-76 mm with diopter adjustment on both eyepieces
• Ball bearing nosepiece with fourfold inversion
• tension-free Plan PLPOLi 5x/0.12, 10x/0.25, 20x/0.40 and S40x/0.65 IOS objectives for polarization
• all optics are anti-fungus treated and anti-reflective coated for maximum light transmission
• 360° rotatable Ø 160 mm stage with 2 clamps
• Height adjustable condenser with 360° rotatable graduated polarizer
• Coaxial coarse and fine drives with 200 divisions
• Accuracy 1 μm, 0.2 mm per revolution
• Total travel approx. 24 mm
• Rack stop to protect slides and objectives
• Friction adjustment
• Diascopic, intensity-adjustable 3 W NeoLED™
• Köhler illumination with internal 100-240 V power supply (CE)
• Polarization attachment with 360° rotatable polarizer/analyzer, quartz wedge, 1L and L/4 plates, and Bertrand lens
• iCare sensor: illumination turns off automatically when microscopist leaves position to save energy
• CSS - Cable Storage System
• Painted finish with antibacterial protective coating
• Supplied with power cord, 500 mA 250 V spare fuse and dust cover in polystyrene sleeve

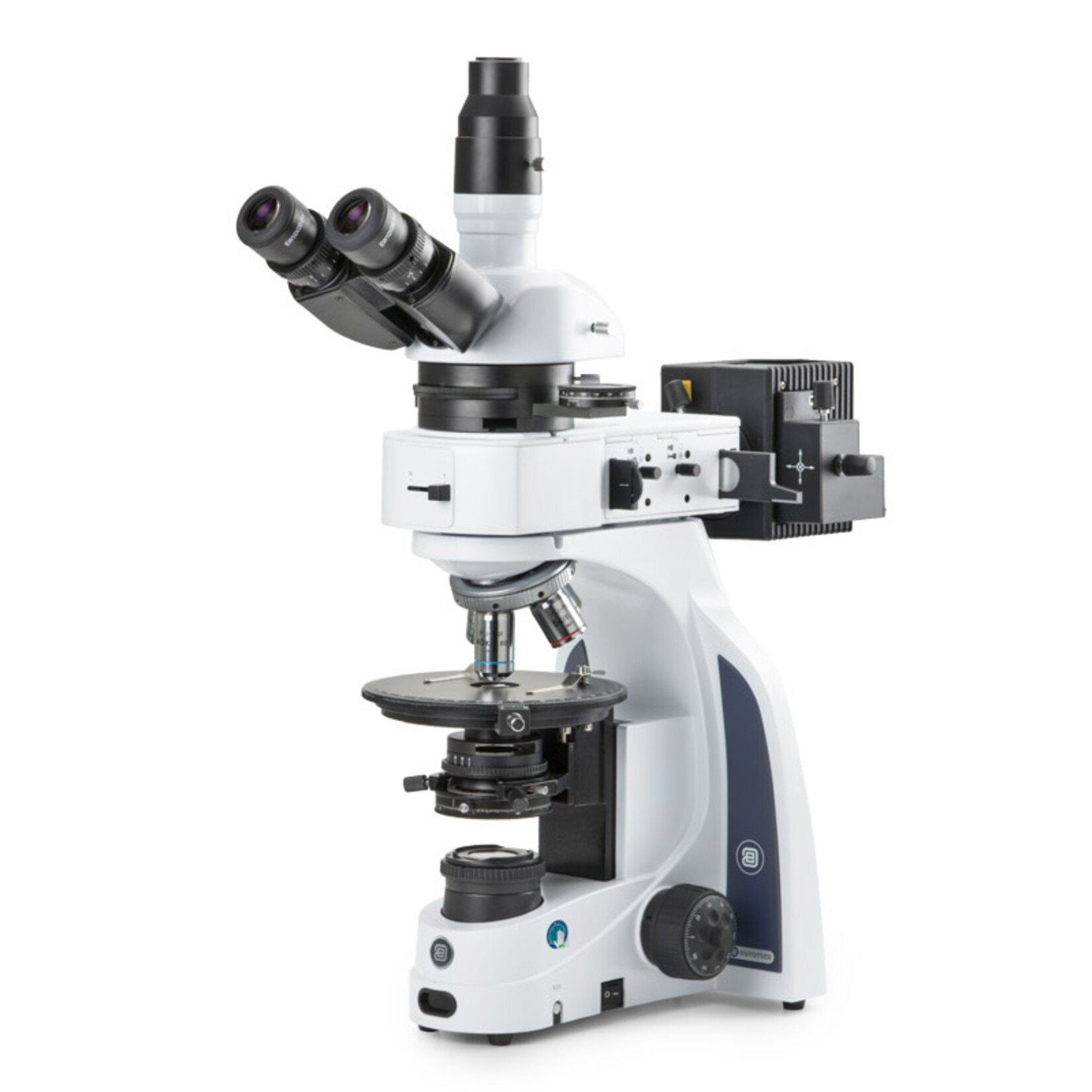

 Specifications iScope Polarization Model IS-1052-PLPOLRI

• Trinocular microscope iScope with eyepieces EWF 10x/20 mm
• Pair of EWF 10x/20 mm eyepieces, one EWF 10x/20 mm eyepiece with crosshairs and one with crosshairs and micrometer
• Trinocular design with Siedentopf 30° inclined tubes
• Pupil distance 48-76 mm with diopter adjustment on both eyepieces
• Ball bearing turret with fourfold reversal
• Stress-free Plan PLPOLi 5x/0.12, 10x/0.25, 20x/0.40 and S50x/0.65 IOS objectives for polarization
• All optics are anti-fungus treated and anti-reflective coated for maximum light transmission
• 360° rotatable Ø 160 mm scale stage with 2 clamps
• Height adjustable condenser with 360° rotatable graduated polarizer
• Coaxial coarse and fine drives with 200 divisions
• Accuracy 1 μm, 0.2 mm per revolution
• Total travel approx. 24 mm
• Rack stop to protect slides and objectives
• Friction adjustment
• Diascopic intensity adjustable 3 W NeoLED™ Köhler illumination with internal 100-240 V power supply (CE)
• Polarization attachment with 50W 12V halogen epi-illumination
• 360° rotatable polarizing filter, analyzer, Bertrand lens, quartz wedge, 1L first red and L/4 retardation plates
• Slider with green-blue filter and white polarizing filter
• iCare sensor: illumination turns off automatically when microscopist leaves position to save energy
• CSS - Cable storage system on the rear side
• Lacquered finish with antibacterial protective coating
• Supplied with power cord, 500 mA 250 V spare fuse and dust cover in styrofoam case
